A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable

A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable
A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable

Large Image :  A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable

Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE, UL,IEC62133,KC
Model Number: L160F100
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 4~8PCS/CARTON,with bubble foam to fixed, with wooden shelf outside, or as your request.
Delivery Time: 1-100pcs 5 days;more than 100pcs to be negotiated
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces per Month Lithium iron phosphate cell
Detailed Product Description
Brand: CALB Model: L160F100
Certification: CE, UL,IEC62133,KC Initial Inner Resistance(1KHz): ≤0.45mΩ
Minimum Capacity: 100Ah Outgoing Voltage: ≥3.250V
High Light:

100AH CALB Lifepo4 Battery

,

L160F100 CALB Lifepo4 Battery

,

L160F100 Rechargeable Lifepo4 Battery

A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable



CALB A Grade Brand New L160F100 3.2v 100AH lifepo4 rechargeable battery

Safety quality Control
1. Short-circuit test
2. over-charge & over-discharge test
3. nail penetrating test
4. Hi-low temp test
5. crush & squeeze test
6. capacity & cyclic test
7. high rate test
8. dropping test
9. thermal abuse



Products Description
Description/ Item
Specifications
Remarks
Nominal Capacity
101Ah
· 2.5~3.65V
· 50A Discharge Current
· Initial Status
Minimum Capacity
100Ah
· 2.5~3.65V
· 50A Discharge Current
· Initial Status
Operating Voltage Range
2.50 - 3.65V
· N.A.
Initial Inner Resistance(1KHz)
≤0.45mΩ
· Initial Status
· 50% SOC (50Ah)
Outgoing Voltage
≥3.250V
· Initial Status
· 50% SOC (50Ah)
Initial SOC
≈40%SOC (40 Ah)
· N.A.
Charge Temperature Range
0 ~ 55℃

Discharge Temperature Range
-20 ~ 55℃

Weight
≤2.2kg
· N.A.
Self-discharge
≤3.5% per month
20℃/50℃ SOC/Within 3 months since Date of Manufacture


Model: CA100;  Size: 142*67*215.5mm; Shell material: plastic

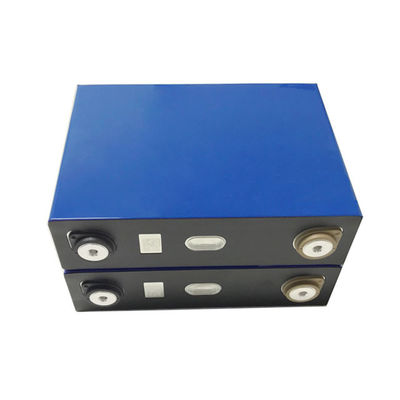

A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable 0

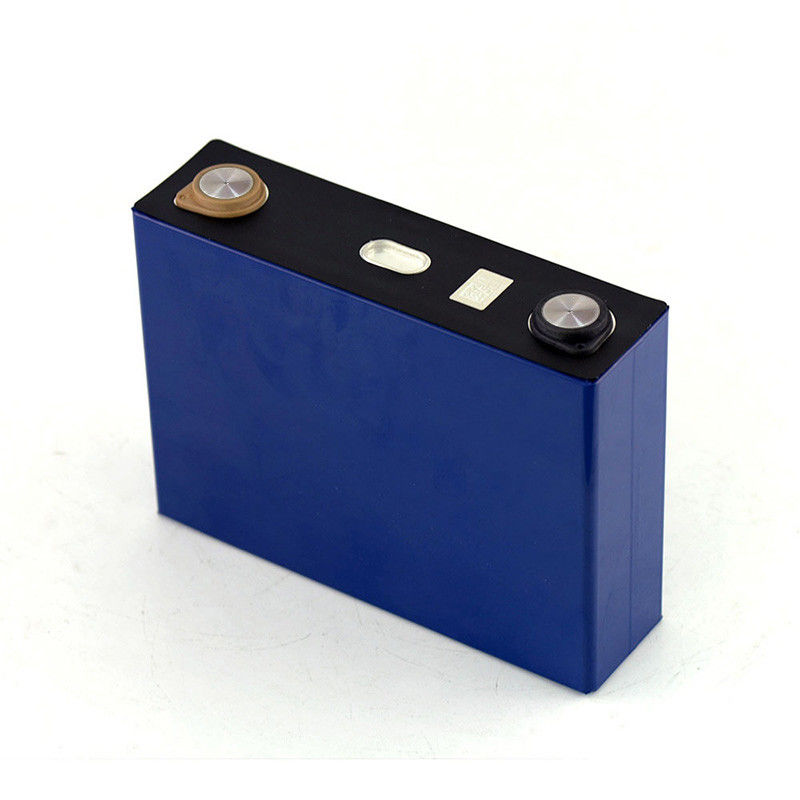

A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable 1

Note:
1.This item is 100Ah CALB item,100% Original Grade A Brand NEW.The true capacity is 110Ah-120Ah.

2.The price come with original Busbars and Bolts,One Battery will come with one pcs busbar and 2pcs bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
3.The busbars size:88*22.2*2.5mm ; Screw size:M8
4.Test report available,and number of lable is consecutive.

In General,we will provide the electronic copy,if you need the paper work,pls contact sales to confirm.


Application
This model can be applied in communication base,motor thruster, RV power supply, mountain power generation, steet light, solor storage energy, audio equipment power supply and etc....
A Grade L160F100 3.2v 100AH CALB Lifepo4 Battery Rechargeable 2

Questions and answers
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote."

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
"-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity."

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
"-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders."

6.How do you make our business long-term and good relationship?
"-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from."
