ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion

ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion
ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion

Large Image :  ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion

Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE, UL,IEC62133,KC
Model Number: CA180FI
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 4~8PCS/CARTON,with bubble foam to fixed, with wooden shelf outside, or as your request.
Delivery Time: 1-100pcs 5 days;more than 100pcs to be negotiated
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces per Month Lithium iron phosphate cell
Detailed Product Description
Cycle Life: 2000 Circles Shell Material: Plastic
Capacity: 180AH Rank: A
Voltage: 3.2V Size: 180*71*279mm
Weight: 5,7kg Maximum Constant Discharging Current: 360A
High Light:

CA180FI CALB Lifepo4 Battery

,

Height 215mm CALB Lifepo4 Battery

,

CA180FI CALB Lifepo4 Battery

ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion



CALB CA180FI LiFePO4 Battery Prismatic Lithium Ion Battery ESS



High power LiFePO4 (LFP) Battery produced for electric vehicles and energy storage systems with the capacity of 180Ah LiFePO4 CALB Battery.

CALB is China Aviation Lithium Battery Limited located in Luoyang, China. It is one of the biggest Lithium-ion & LiFePO4 Battery manufacturers in China.



Introduction of CALB battery

CALB Battery is a high power lithium iron phosphate (LiFePO4) battery. The voltage of each cell is 3.2 volt. The capacity is 180 Ampere Hour. China Aviation Lithium-Ion Battery with high capacity from 60AH to 200AH, the batteries can be widely used in Energy Storage Systems, EV, UPS, and so on.

Our Lithium-Ion Battery has excellent performance, high stability, and a long lifetime.

CALB Battery has become a world leader in Lithium Iron Phosphate for power applications. These batteries are sturdy, with a lifespan of over 3000 cycles at 80% DOD (depth of discharge). We use these batteries for traction applications (EV, industry, etc...) but also for stationary batteries (Off Grid, Smart Grid, standalone applications, etc..).

Lithium Iron Phosphate cells are used in self-consumption projects requiring high capacity. The high energy stored in these cells also allows traction for heavy vehicles (trucks, industrial machinery, marine applications, etc.



Brief Parameters CALB CA180FI LiFePO4 Battery

1. 180AH CALB Battery Cell
2. Model: CA180 CALB Battery
3. Nominal Capacity: 180AH
4. Operating Voltage: 2.8V~4.0V
5. Weight: 5.6kg ± 100g
6. Dimensions: 180×71×279(mm)



Specification of CALB CA180FI LiFePO4 Battery

Item
Specification
Item
Specification
Model Nr.
CA100
Max. discharge current
3C
Nominal Capacity
100Ah
Max.charge voltage
3.65V
Nominal Voltage
3.2V
Discharge cut-off voltage
2.5V
Impedance
≤0.3mΩ
Charge method
CC/CV
Weight
3.3KG
Charge working temp.
0ºC~55ºC
Dimension
65*142*215mm
Discharge working temp.
-20ºC~55ºC
Standard Charge Current
Maximum charge current
0.5C
1C
Cycle life
≥2000

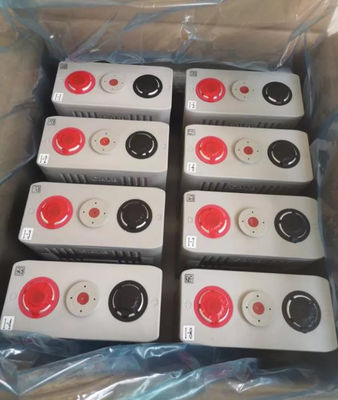

Pictures of CALB CA180FI LiFePO4 Battery

ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion 0

ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion 1

Mulitipul applications



ESS 3.2V 180AH CA180FI CALB Lifepo4 Battery Prismatic Lithium Ion 2
