4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life

Certification
China Amazing Energy Limited certification
China Amazing Energy Limited certification
Customer Reviews
The order arrived today - Yay! The batteries and hardware aare nice and the voltages are closer than others we have purchased from different vendors. Thank you for all your help and we will use your company exclusively as we set up our catalog.

—— Stanley - USA CATL 271Ah cell

Everythink is going fine! and plan to order more 8 sets of 51.2V 1000Ah 50Kwh battery cabinet.

—— Johnson Solomon - USA 51.2V 1000Ah battery cabinet

I checked voltages and internal resistance and they ware all between 3.295 and 3.297, only 2 mV between them, and IR was between 0.18 and 0.23, or 0.05 mOhm between them. Very good, and thanks for advice.

—— Mike - Australia CATL 302Ah cell

Received 48V 100Ah module no damage, I open four modules, turned them on, and verifyed voltage, cells in modules have the same voltage. This is good to see that cells keeped the same voltage during 3 months.

—— Moussa - South Africa 48V 100Ah LiFePo4 module

I'm Online Chat Now

4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life

4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life
4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life 4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life

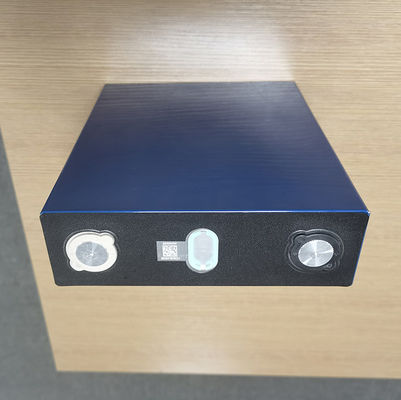

Large Image :  4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life

Product Details:
Place of Origin: China
Brand Name: CALB
Certification: CE, UL,IEC62133,KC
Model Number: CA230
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 4~8PCS/CARTON,with bubble foam to fixed, with wooden shelf outside, or as your request.
Delivery Time: 1-100pcs 5 days;more than 100pcs to be negotiated
Payment Terms: T/T; Paypal
Supply Ability: 100000 Piece/Pieces per Month Lithium iron phosphate cell
Detailed Product Description
Brand: CALB Model: CA230
Grade: A Grade Capacity: >230AH
Cycle Life: 4000 Circles Shell Material: Aluminium
Storage Temperature: -20 To +45 Degrees Celsius Size: 180*71*279mm
High Light:

4000 Circles CALB Lifepo4 Battery

,

Deep Cycle CALB Lifepo4 Battery

,

230AH Lifepo4 Deep Cycle Battery

4000 Circles CALB Lifepo4 Battery 3.2v 230AH Long Deep Cycle Life



CALB A Grade High Capacity CA100 3.2v 230AH Lifepo4 Deep Cycle Battery



LiFePO4 Lithium Ion Battery Advantages:

Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burining and explosion.

Long Cycle Life: Can charge and discharge more than 2000 times.

Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.



Parameter

Product Name
CALB A Grade High Capacity CA230 3.2v 230AH Lifepo4 Deep Cycle Battery
Specification
L73F230
Size

W
Width
173.93±0.15
T
Thickness
53.72±0.15
H
Height
207.2±0.3
Nominal Capacity
230Ah
Minimal Capacity
230Ah
Work Voltage
2.5~3.65V

Charging Time
Standard Charge
~4h
Fast Charge
~1h

Operating Temperature
Charging Temperature
0~55°C
Discharging Temperature
-36~65°C
Weight
4.17±0.16kg
Shell Material
Aluminum
Internal Resistance(Ac. 1kHz)
≤0.3mΩ
Cycle Life
≥4000 cycles





Our LiFePo4 Battery Cell Feature & Advantages

1. Safety: safest Li-Ion battery, MSDS CE UN38.3 approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 4000 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~55°C
7. Portable design
8. Good performance at high temperature and high temperature resistance

9. Low self-discharge rate: < 3% monthly



Applications of CA100 3.2v 230AH Lifepo4 Deep Cycle Battery
* Solar energy storage
* Industrial energy storage
* Residential energy storage
* Motive power [electric vehicles (EV)]
- Forklifts
- Semi-traction (sweepers and scrubbers)
- Buses, trams, and more
- AGV (automated guided vehicles)
- Personal mobility (wheelchair, electric bikes and scooters)
- Starter battery for motorcycles



See more detailed picture of CALB 230ah LiFepo4 Deep Cycle Battery

4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life 0



4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life 1





















Note:



1. This item is 100Ah CALB item,100% Original Grade A Brand NEW.The true capacity is 110Ah-120Ah.
2. The price come with original Busbars and Bolts,One Battery will come with one pcs busbar and 2pcs bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
3. The busbars size:88*22.2*2.5mm ; Screw size:M8
4. Test report available,and number of lable is consecutive.

In General,we will provide the electronic copy,if you need the paper work,pls contact sales to confirm.





4000 circles CALB Lifepo4 Battery 3.2v 230AH Long deep Cycle Life 2
