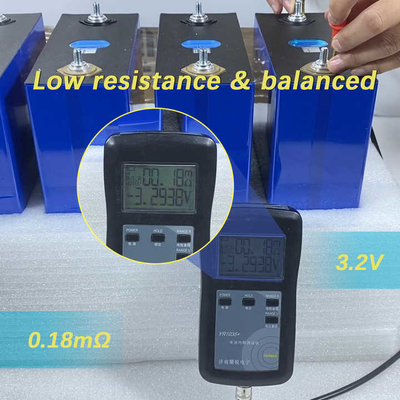

I checked voltages and internal resistance and they ware all between 3.295 and 3.297, only 2 mV between them, and IR was between 0.18 and 0.23, or 0.05 mOhm between them. Very good, and thanks for advice.

—— Mike - Australia CATL 302Ah cell

Received 48V 100Ah module no damage, I open four modules, turned them on, and verifyed voltage, cells in modules have the same voltage. This is good to see that cells keeped the same voltage during 3 months.

—— Moussa - South Africa 48V 100Ah LiFePo4 module

I'm Online Chat Now

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage
LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage

Large Image :  LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage

Product Details:
Place of Origin: China
Brand Name: EVE / CATL
Certification: UL1973
Model Number: 3.2V 280Ah
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Price: USD 72-78
Packaging Details: UN box
Delivery Time: 1-100pcs 5 days；more than 100pcs to be negotiated
Payment Terms: T/T
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Product Name: LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell Typical Voltage: 3.2V
Typical Capacity: 280Ah 290Ah Type: Lifepo4 Battery
Cycle Life: 6000 Cycles At 80% Capacity Net Weight: 5.4±0.30kg
Internal Resistance: 0.1-0.2 Mhom Quality: Grade A Battery Cell
Earranty: 1 Year Continuous Discharge Current: 1C

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage



Specifications of LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell

Item
Parameter
Remark
Standard charging current
0.5C
25±2℃
Maximum charge- up sustainable current
1C
25±2℃
Standard charging voltage
The maximum single battery is 3.65V

Standard charging mode
0.5C
Continuous current continuous charge to the maximum of 3.65V, and then at a constant voltage of 3.65V to the lower current limit
of 0.05C
Standard charging temperature
25±2℃

Battery tempera ture Absolute charging temperature(Cell temperature)
0~65℃
No matter what charging mode the cell is in, once the Stop the charge when it is found that the cell temperature exceeds the
absolute charging temperature range
Absolute charging voltage
Maximum size of 3.65V
No matter what charging mode If the cell voltage exceeds the the cell is in, once the absolute charging voltage range
Standard discharge current
0.5C
25±2 ℃
Maximum continuous discharge current
1C
N.A.
Discharge cut-off voltage
2.5V
2.0V
temperature T>0℃
temperature T≤0℃
Standard discharge temperature
25±2 ℃
Battery temperature
Absolute discharge temperature
-35~65℃
Stop discharging if the cell temperature exceeds the absolute discharge temperature, whether it is in the continuous discharge
mode or in the pulse discharge mode



Application for LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell



Diy battery pack for solar energy storage, for Boat,Commnication storage,Enery storage,E-bus,UPS,R/V Caravan

Packaging & Delivery of CATL / EVE 280ah Lifepo4 battery cell

Selling Units:Single item
Single package size: 19X10X22 cm
Single gross weight:6.000 kgPackage
Type:Inner Box+Outer Carton

Parameters of LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell
LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 0
Test data of 3.2v 280ah lifepo4 cell assembly lfp battery pack

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 1



Rate Discharge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack


LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 2



Rate Charge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 3



High &Low temp.Energy of CATL / EVE 280ah Lifepo4 battery cell

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 4

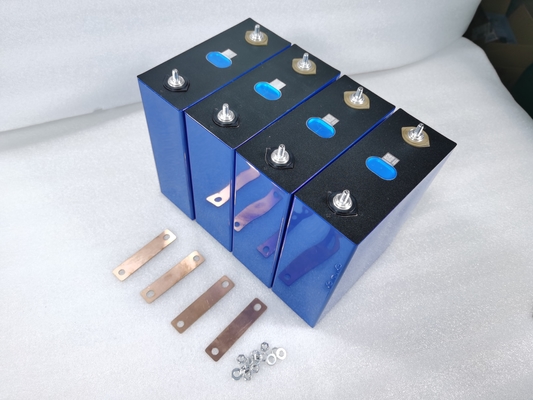

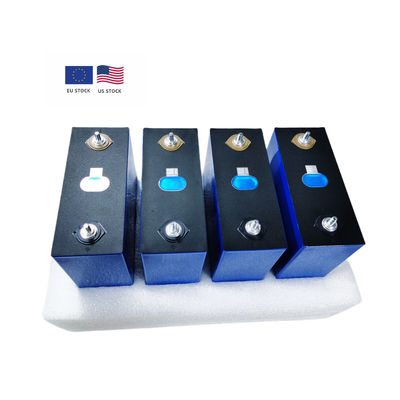

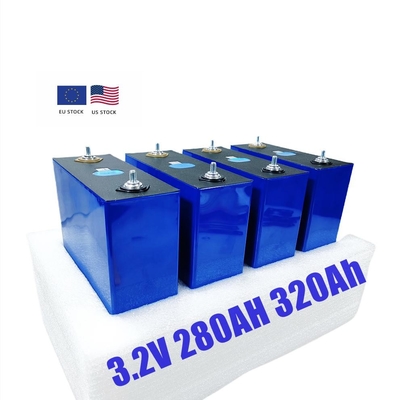

Photos of CATL 3.2v 280ah Lifepo4 battery Cell

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 5



LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 6





Packaging & Delivery
Selling Units: 4pcs per box
Single package size: 52* 29* 33mm
Single gross weight:23.000 kgPackage
Type:Inner Box+Outer Carton

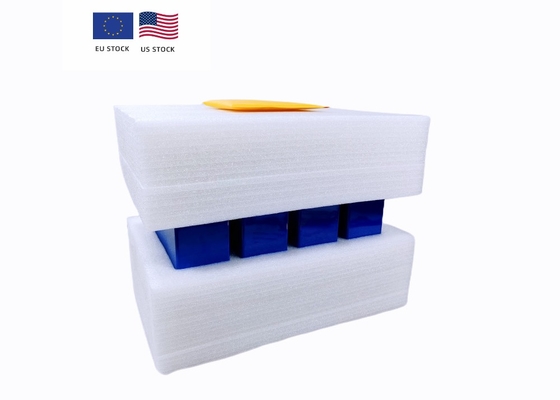

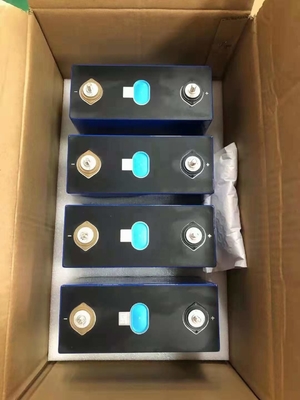

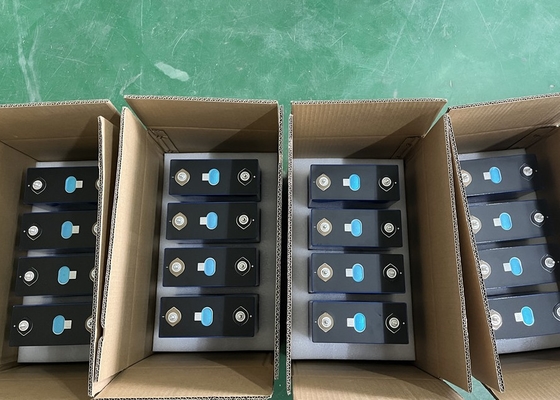

Package pictures of EVE 280Ah lifepo4 battery cell

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 7

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 8

LiFePo4 Battery 280Ah EU Warehouse 3.2V Lifepo4 Cell For Solar Energy Storage 9
