CATL / EVE 280ah Lifepo4 battery cell

CATL / EVE 280ah Lifepo4 battery cell
CATL / EVE 280ah Lifepo4 battery cell

Large Image :  CATL / EVE 280ah Lifepo4 battery cell

Product Details:
Place of Origin: China
Brand Name: EVE / CATL
Certification: UL1973
Model Number: 3.2V 280Ah
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Price: USD 72-78
Packaging Details: UN box
Delivery Time: 1-100pcs 5 days；more than 100pcs to be negotiated
Payment Terms: T/T
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Product Name: CATL / EVE 280ah Lifepo4 Battery Cell Typical Voltage: 3.2V
Typical Capacity: 280Ah 290Ah Type: Lifepo4 Battery
Cycle Life: 6000 Cycles At 80% Capacity Width: 173.7±0.3mm
Thickness: 71.5±0.5mm Height（Total Height）: 207.2±0.5mm
Height(Principal Height）: 204.2±0.5mm Net Weight: 5.4±0.30kg
Internal Resistance: 0.1-0.2 Mhom Quality: Grade A Battery Cell
Earranty: 1 Year Continuous Discharge Current: 1C

CATL / EVE 280ah Lifepo4 battery cell

3.2V LF280K model with capacity 290Ah



Specifications of CATL / EVE 280ah Lifepo4 battery cell

Item
Parameter
Remark
Standard charging current
0.5C
25±2℃
Maximum charge- up sustainable current
1C
25±2℃
Standard charging voltage
The maximum single battery is 3.65V

Standard charging mode
0.5C
Continuous current continuous charge to the maximum of 3.65V, and then at a constant voltage of 3.65V to the lower current limit
of 0.05C
Standard charging temperature
25±2℃

Battery tempera ture Absolute charging temperature(Cell temperature)
0~65℃
No matter what charging mode the cell is in, once the Stop the charge when it is found that the cell temperature exceeds the
absolute charging temperature range
Absolute charging voltage
Maximum size of 3.65V
No matter what charging mode If the cell voltage exceeds the the cell is in, once the absolute charging voltage range
Standard discharge current
0.5C
25±2 ℃
Maximum continuous discharge current
1C
N.A.
Discharge cut-off voltage
2.5V
2.0V
temperature T>0℃
temperature T≤0℃
Standard discharge temperature
25±2 ℃
Battery temperature
Absolute discharge temperature
-35~65℃
Stop discharging if the cell temperature exceeds the absolute discharge temperature, whether it is in the continuous discharge
mode or in the pulse discharge mode





Application for CATL / EVE 280ah Lifepo4 battery cell
Diy battery pack for solar energy storage, for Boat,Commnication storage,Enery storage,E-bus,UPS,R/V Caravan

Packaging & Delivery of CATL / EVE 280ah Lifepo4 battery cell

Selling Units:Single item
Single package size: 19X10X22 cm
Single gross weight:6.000 kgPackage
Type:Inner Box+Outer Carton

Parameters of 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack
CATL / EVE 280ah Lifepo4 battery cell 0
Test data of 3.2v 280ah lifepo4 cell assembly lfp battery pack

CATL / EVE 280ah Lifepo4 battery cell 1



Rate Discharge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack


CATL / EVE 280ah Lifepo4 battery cell 2



Rate Charge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

CATL / EVE 280ah Lifepo4 battery cell 3



High &Low temp.Energy of CATL / EVE 280ah Lifepo4 battery cell

CATL / EVE 280ah Lifepo4 battery cell 4

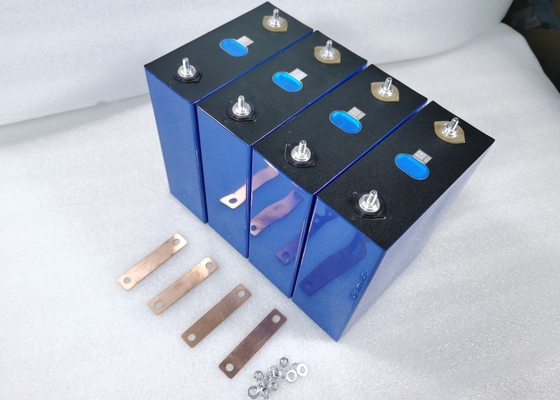

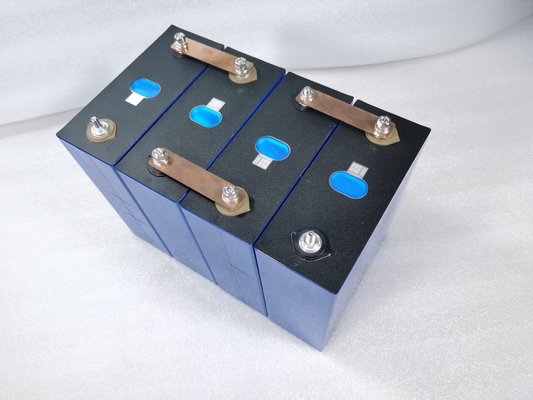

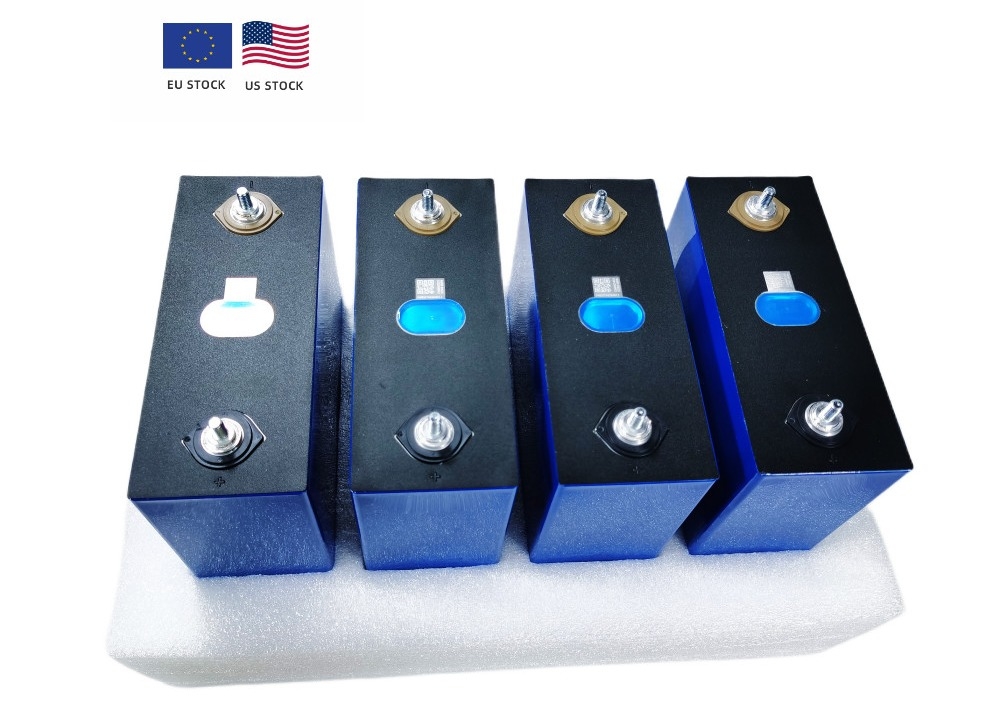

Photos of CATL 3.2v 280ah Lifepo4 battery Cell

CATL / EVE 280ah Lifepo4 battery cell 5



CATL / EVE 280ah Lifepo4 battery cell 6





Packaging & Delivery
Selling Units: 4pcs per box
Single package size: 52* 29* 33mm
Single gross weight:23.000 kgPackage
Type:Inner Box+Outer Carton

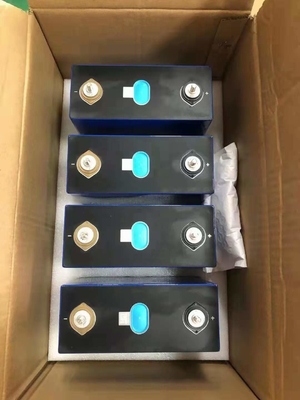

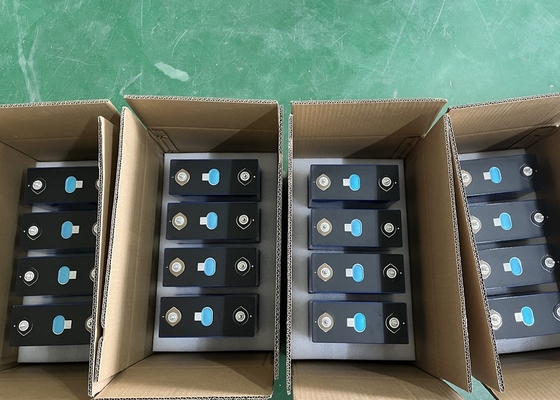

Package pictures of EVE 280Ah lifepo4 battery cell

CATL / EVE 280ah Lifepo4 battery cell 7

CATL / EVE 280ah Lifepo4 battery cell 8

CATL / EVE 280ah Lifepo4 battery cell 9
