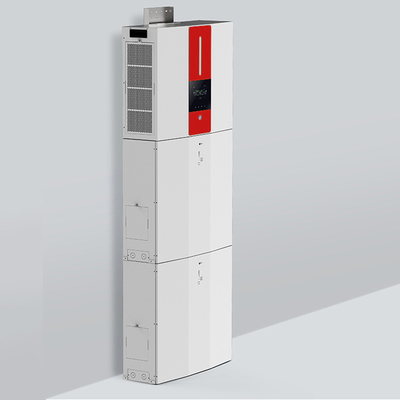

Wall Mount ESS Battery All In One 48V 20KWH Home Energy Storage

Wall Mount ESS Battery All In One 48V 20KWH Home Energy Storage

Wall Mount ESS Battery All In One 48V 50KWH Energy Storage Battery Integrated 5.5KW Inverter

• Pure sine wave output
• Self-consumption and Feed-back to the Grid
• Programmable supply priority for PV,battery or Grid
• User-adjustable battery charging current
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi
• Monitoring software for real-time status display and control
• Enhance AC/Solar charger to 100A
• Scalable Li-Ion battery expansion

Specification:

DC input		Battery Box
Max.PV input power	8000W	Number of battery modules	2 pcs 51.2V 200Ah modules
Max.PV input voltage	370V	Storage capacity	20KWH
Startup voltage	150V	Nominal voltage	51.2V
MPPT voltage range	100-500V	Battery voltage range	42-57V
No. of MPPT	2	Max discharge current	200A
Max. number of PV strings per MPPT	1	Battery type	LFP
AC input and output		Battery brand	/
Nominal AC input power	5000W	Cooling	/
Nominal AC output power	5000W	Protect	BMS inside
Max. AC output Apparent power	6000VA
Max. AC output current	/	Battery Module
Nominal output voltage	110V/220C	Module capacity	10KWh
AC voltage range	120/240V	Module dimensions (W×H×D)	T214*W550*H621mm
Nominal output frequency	50/60Hz	Module weight	/
Output power factor	0.8leading - 0.8lagging	General Specification
Output THDi(@ Nominal output)	<3%	Environmental protection rate	IP21
Battery input and output		Ambient temperature rate	-25~45ºC
Nominal battery voltage	51.2V	Communication	4G/WIFI
Battery voltage range	42-57V	Remote access	APP/Website
Max.charging current	200A	Warranty for inverter	2years
Max.discharging current	200A	Warranty for battery	5years
Dimension(W×H×D) of 10kwh module	214 * 621 * 500





Product Images:

The Home ESS electrical inter face provides a simple connection to any home or building.It is revolutionary compact design achieves market-leading energy density and is easy to install.enabling owners to quickly realize the benefits of reliable,clean power.





Complete Cable Set for the ESS battery

Powercable+Communication Cable











System block diagram



Compatible with most of the available Hybrid inverters

AE ESS batteries have commissioned for communication and compatibility with the major inverter and solar charger brands such as Victron, Huawei, Goodwe, Growatt, Voltronic, Kehua, Kstar, East, Luxpower, Megarevo, INVT, Ginlong, Scholar, Sofar, etc. And the list is to be continued as our engineers are working on testing and commissioning with more inverter and charger brand.





Other Microgrid BESS projects





Key Features



● LiFePO4 composition – provides exceptional safety and longevity

● High safety and reliability

● 6,000cycles/more than 15 years’ service life

● Consistent performance over wide temperature range

● Wall-mounted/Wheel stand, convenient installation

● Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates

● 5-10 years warranty
