Long Cycle Lifepo4 Storage Battery Container Energy Storage System

Long Cycle Lifepo4 Storage Battery Container Energy Storage System
Long Cycle Lifepo4 Storage Battery Container Energy Storage System Long Cycle Lifepo4 Storage Battery Container Energy Storage System Long Cycle Lifepo4 Storage Battery Container Energy Storage System Long Cycle Lifepo4 Storage Battery Container Energy Storage System

Large Image :  Long Cycle Lifepo4 Storage Battery Container Energy Storage System

Product Details:
Place of Origin: China
Brand Name: GreFlow Energy
Certification: CE ROHS
Model Number: 100kw lithium battery energy storage container
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Carton
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per Month
Contact Now
Detailed Product Description
Product Name: 100kw Energy Storage Container 100Kwh Lithium Battery Industry Voltage: 400V-700V
Each Model: 51.2V 300AH 15Kwh Each One Housing: Waterproof Custom Iron Cabinet
Energy: 100kwh Inverter: 20Kw Three Phase Inverter
Battery Type: Long Cycle Lifepo4 Battery Battery Cell Use: EVE 304AH Lifepo4 Cell
Fireproof Epquipmnt: YeS Control: EMS ( Energy Management System)
High Light:

Long Cycle Lifepo4 Storage Battery

,

100Kwh Lifepo4 Storage Battery

,

Container Energy Storage System

Long Cycle Lifepo4 Storage Battery Container Energy Storage System



100kw Energy Storage Container 100Kwh Lithium Battery Industry Solar Energy System



Energy storage containers are efficient energy storage devices that can store various types of energy such as electricity, solar energy, and wind energy for future use. These containers can be used anywhere, whether in urban or remote areas, to provide reliable energy reserves for users.
Made of high-quality materials, energy storage containers have multiple safety measures such as waterproof, fireproof, and explosion-proof features to ensure safe use. Additionally, these containers have a high energy conversion rate, quickly converting stored energy into electricity to provide users with stable power supply.
Energy storage containers also have an intelligent control system that enables remote monitoring and control. Users can monitor the container’s operating status and energy reserves anytime, anywhere through devices such as smartphones or computers, making management and maintenance more convenient.
In summary, energy storage containers are efficient, safe, and reliable energy storage devices that provide stable power supply to meet users’ energy needs in different scenarios.

Specification of GreFlow Energy Storage Container

Number
Project
65kW/120kWh
125kW/240kWh
DC side parameters
1
Cell selection
EVE 3.2V / 304Ah (Prismatic cells)
2
Battery distribution,
storage capacity
(kWh)
120
240
3
Battery group
mode
125S1P
125S2P
4
Maximum voltage
range (Vdc)
400~456V
5
depth of
discharge
90% DOD
6
cycle life
6,000 times (25℃,0.5C/0.5C, 70% EOL)
7
BMS configure
Three- level management
AC side parameters
8
Grid-connected
access mode
3L
3L+N
9
Rated output
voltage (Vac)
400
10
Rated output
power (kW)
65
125
11
Maximum output
power (kVA)
68.8
137.5
12
50 rated frequency
50 Hz
13
power factor
1 (advance ) - 1 ( lag )
14
direct
component
＜0.5% In
15
Off-grid switching
time (ms)
＜20
system parameter
16
Size (W * H * D,
mm)
1300*1900*1400
2400*2500*1400
17
w e i g h t ( k g )
1800
3600
18
Working environment temperature: (℃)
-20~60
19
Working Environment
Humidity (% RH)
5-85 (no condensation)
20
Noise (dB)
≤70
21
h e i g h t ( m )
≤2000
22
Thermal
management form
Liquid cooling + dehumidifying
23
Fire form
Cabinet grade perfluorohexone + combustible
gas detection
24
communication
interface
RS -485/Ethernet
25
human-computer
interaction
Industrial display
26
levels of
protection
IP 54
27
Charge / discharge
switching time
(ms)
＜100
28
Maximum system
efficiency
≥90%
88%
29
Off-grid function
possess

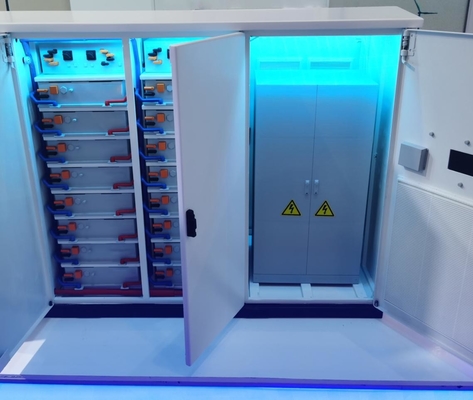

The Picture Energy Storage Container 100kw 200kw lithium battery we made before

Long Cycle Lifepo4 Storage Battery Container Energy Storage System 0



We have full Battery Cabinet Projects Experience



Long Cycle Lifepo4 Storage Battery Container Energy Storage System 1Long Cycle Lifepo4 Storage Battery Container Energy Storage System 2

Long Cycle Lifepo4 Storage Battery Container Energy Storage System 3



EMS Energy Management System of Energy Storage Container

Long Cycle Lifepo4 Storage Battery Container Energy Storage System 4



Freely inquiry me details if you interest in this product~
