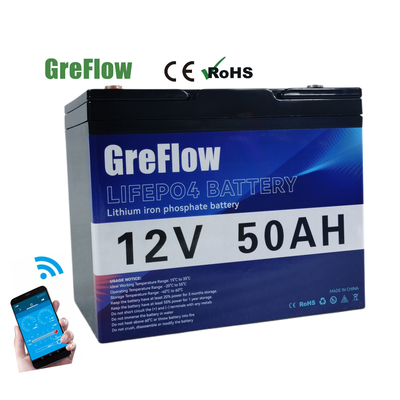

4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage

4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage
4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage 4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage

Large Image :  4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: MSDS, CE, UN38.3
Model Number: 12V 50Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10 packs
Price: 72~144 USD
Packaging Details: UN box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 packs per two weeks
Detailed Product Description
Warranty: 3 Months Single Battery Size: W:175*T:30*H:135mm
Total Weight: 5.58-11.16kg Nominal Capacity: 50Ah
IP Level: IP56 Internal Resistance: ≤0.5mΩ
Life Cycle: 4000 Times Application: Home Appliances, Consumer Electronics, Golf Carts
Battery Type: Lifepo4 Battery
High Light:

50Ah 12V Lifepo4 Battery Pack

,

IP56 UPS 50Ah Solar Battery

,

12V 50Ah Lifepo4 Battery

4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage



12V LiFePo4 Storage Battery 12.8v 50ah Solar Battery For UPS Solar Storage



Product Paramenters of 12V LiFePo4 Storage Battery

No.

Items

Specifications

1

Nominal Voltage

12V

2

Nominal Capacity

50Ah

3

Standard Charge Current

10A-25A (0.2C-0.5C rate)

4

Max. Charge Current

50A (1C rate)

5

Continuous Discharge current

2C (120A)

6

Peak Discharge Current

3C(180A)

7

Charge Cut-off Voltage

15.6V

8

Discharge Cut-off Voltage

8.0V

9

Inner Resistance

(Impedance)

≤ 1mΩ (At 0.2C rate, 2.0V cut-off)

10

Weight

Customized

11

Single Cell Dimensions

Length: 133mm

Width: 174mm

Thickness: 32mm

12

Operating Temperature

Charging: 0°C ~ 45°C

Discharging: -20°C ~ 60°C

(The cell surface temperature cannot exceed 70°C)

13

Storage Temperature/Humidity

Temperature: -10°C ~ +35°C

Humidity:65%±20%RH

(optimal store temperature of 23 ± 5°C for long term storage)

14

Cycle Life

2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)



The battery cell used of this 12V LiFePo4 Storage Battery:

CATL, CALB or other brand lifepo4 primatic cell







4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage 0



The application of LiFePo4 battery pack:



·  Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
·  Passenger and commercial battery electric vehicles (BEVs)
·  Mild and micro hybrid vehicles
·  Long-Duration (LD) grid energy storage systems



The features of LiFePo4 Storage battery:
1. More than 3500 cycles under the designed working condition
2. Anti-explosion safety valve applied
3. Aluminum shell for better cooling
4. Ceramic membrane technology applied to enhance safety
5. Wild applications :UPS ,Solar Storage ,EV etc.application

4000 Times IP56 50Ah 12V Lifepo4 Battery Pack For UPS Solar Storage 1



Remark
We have lithium, lifepo4 batteries, accept customized battery pack, we can't update all items here. If you want any others, please take it easy to contact with us and tell us your requirement (the capacity / voltage / size / discharge current ) , And if there is sample request or any other special requirements, pls feel free to contact us for confirmation.Thanks.



Shipping ways for lifepo4 battery:





1



USA

ETD:3-7 days

The tracking will be update after pick up by local express.Usually it will take around 15-25 days after delivery.

By sea+FEDEX Delivery

(DDP,Tax free)

ETA:25-30 days after delivery



2



EU

ETD:3-7days

The tracking will be update after pick up by local express.Usually it will take around 20-30 days after delivery.

By railway+UPS(DDP,Tax free)

ETA:30-35 days after delivery



3



AU

ETD:3-7 days

The tracking will be update after pick up by local express.Usually it will take around 15-25 days after delivery.

By sea+Delivery

(DAP)

ETA:25-30 days after delivery

4

We can't deliver the following address directly



A

USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.

B

Portugal: Azores and Madeira

C

Spain:Canary Islands, hueda and melilia

D

Russia: Kamchatka Peninsula

E

Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.

Noted: The tracking will be update after pick up by local express.

Please wait patiently or contact us.*Countries that do not appear in the table, Please consult us for freight charges



FAQ


1).  Are the batteries GRADE-A,Brand NEW?
This item is 200Ah CATL item,brand new and unused...

2). Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts,One Battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)If need more please contact us online.`



3). Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.



4.)  What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.


5). How can I place the order?
For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly before reading for all the details,or you can provide your shipping informtion to our sales.

Payment method through TT and PayPal.



6). How can I do if I need more help for the order?

You can chat our sales online or send inquiry email,we will respond you ASAP
