Product Details:
Payment & Shipping Terms:
|
| Product Name: | Custom 48v 100Ah Lifepo4 Battery | Type: | Lifepo4 Rechargeable Battery |
|---|---|---|---|
| Nominal Capacity: | 100ah | Nominal Valtage: | 48v |
| Charging Current: | 50A | Working Discharging Current: | 100A |
| Max Discharging Current: | 200A | Energy: | 5KWH |
| IP Level: | IP65 | Cycles: | 4000 Cycle @ 100% DOD, 80% Capacity Remain |
| Storage Temperature: | -20℃~60℃ | Warranty: | 5 Years |
| BMS: | Built In BMS |

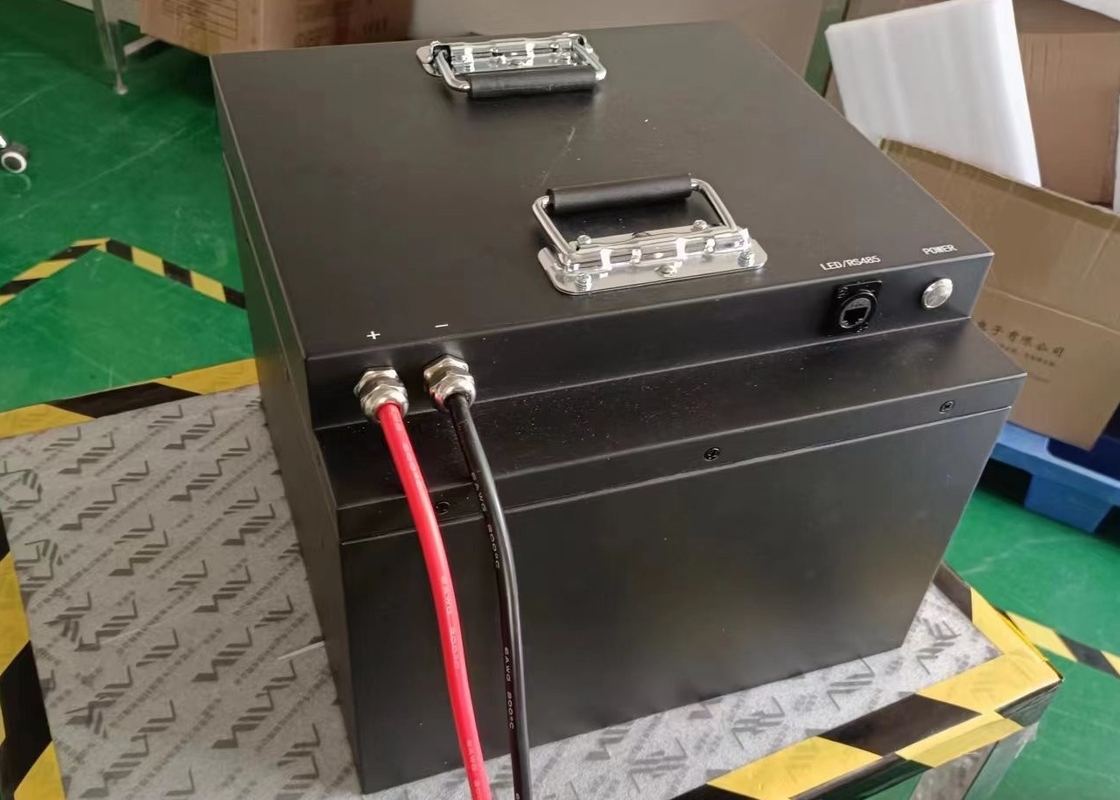

Custom 48V 100Ah 120Ah 150Ah 200Ah Lifepo4 Battery For Electric Vehicle
Specification of 48V 100Ah lifepo4 battery
| Model | LFP48-100 |
| Performance | |
| rated capacity | 100ah |
| nominal voltage | 48v |
| discharge ending voltage | 36.8v |
| charge limited voltage | 58.4v |
| max. charging current | 50A-0.5C |
| max. continous discharging current | 100A-1C |
| cycle life | 4000 cycles @ 100%DOD at 80% energy |
| discharge rate | 1-3C |

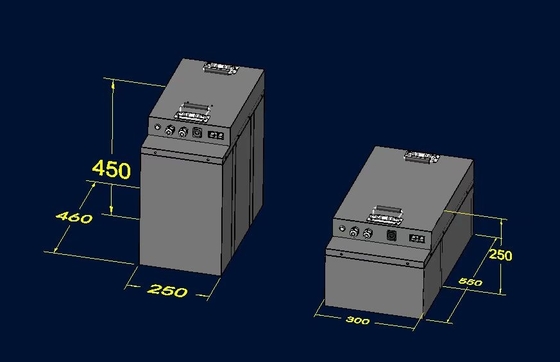

| MECHANICAL SPECIFICATIONS | |
| dimensions | customized |
| weight | 52kg |
| OTHERS | |
| operating temperature | charging 0-45℃/DISCHARGING: -20 to 60℃ |
| storage temperature | -20℃ to 60℃ |
| humidity | 5% to 95% relative humidity |
| certification | CE/ROHS/MSDS |
| warranty | 3 years |
Main applications of Custom 48V 100Ah lifepo4 battery
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, electric boat, aircraft, toys
5. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
6. Small medical equipment and portable equipment
7. RV,Camping car and yacht
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight,solar street lights
Customized production Custom 48V 100Ah lifepo4 battery
Our advantages
Why LiFePo4 battery is better than Lithoum iom battery?

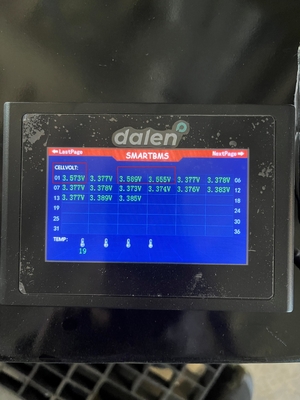

BMS battery intelligent management system
Safe fast charging technology
Smart design: Portable handle, led display,customizable anderson interfrance,stainless stell shell.
Appllications of 48V 100Ah Lifepo4 Battery:
What Would You Like to Know?
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Amazing battery limited ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big
