Product Details:
Payment & Shipping Terms:
|
| Product Name: | NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell | Application: | Electric Motorcycle Scooter Golf Cart |
|---|---|---|---|
| Battery Model: | CATL EVE CALB BYD For Choice | Nominal Voltage(V): | 3.7V |
| Nominal Capacity(mAh): | 100AH ( Have 30Ah, 50Ah, 80Ah Avaliable) | AC-impedance(1000Hz): | 0.24mΩ |
| Weight: | 0.98KG | Maximum Charge Current At Room Temperature: | 3C (Continuous) |
| Charging Voltage: | 4.2V |
NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell For Electric Motorcycle Scooter Golf Cart
We can offer you accessories like bus bars , screws and washers .The bus bar is made of Tin-planting pure copper , the screws and washers are made of SUS304 stainless steel .
We test and match each batteries before packing . We make sure the whole lots batteries are close in voltage and internal resistance .
We offer a full power solution of Lithium and LiFePO4 battery pack + charger + BMS.
Features of NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell
1. Long Life ,can cyclic charge and discharge 3000 times
2. Capacity consistency,voltage consistency.
3. More safe than other power batteries.
4. No memory effect
5. Low self discharge rate
6. Environment friendly
7. Good safety characteristics
Specification -NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell
| Item | Specification | |
| 1 | Chemistry | Lithium / NMC |
| 2 | Nominal Capacity | 100Ah |
| 3 | Nominal Voltage | 3.7V |
| 4 | AC-impedance(1000Hz) | 0.24±0.05mΩ |
| 5 | Weight | 0.98KG |
| 6 | Dimension (mm) H*W*D | 160*50*116MM |
| 7 | Maximum Charge Current at Room Temperature | 1C (Continuous) |
| Charging Voltage | 4.2V | |
| 8 | Maximum Discharge Current at Room Temperature | 3C (Continuous) 5C (60s) |
| Discharge End Voltage | 2.5V(>0℃),2.0V(≤0℃) | |
| 9 | Max Operating Temperature Range | |
| Charge | 0℃ ~ 65℃ | |
| Discharge | -35℃ ~ 65℃ | |
| 10 | Optimal Operating Temperature Range | |
| Charge | 15℃ ~ 35℃ | |
| Discharge | 15℃ ~ 35℃ | |
| 11 | Storage Temperature | |
| 1 month | -30℃~ 45℃ | |
| 6 months | -20℃ ~ 35°C | |
| *Cells should be stored at 20%SOC-40%SOC or the voltage is between 3.275V and 4.205V. | ||

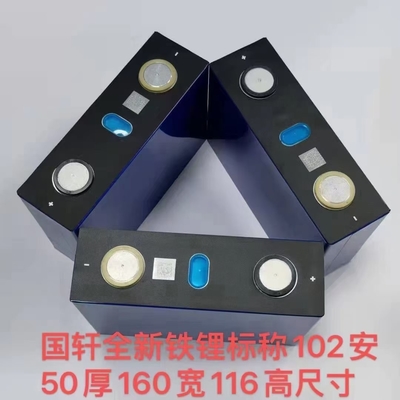

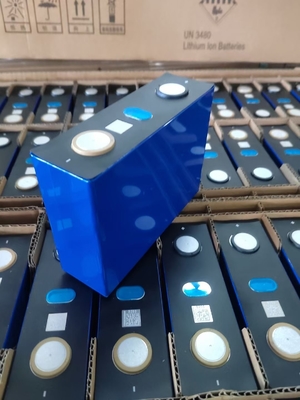

The Detail images of NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Application of NMC 3.7V 100Ah 50Ah Prismatic Lithium Battery Cell
solar energy storage, solar power system, UPS supply,engine starting , electric motorcycle scooter golf trolley/carts.

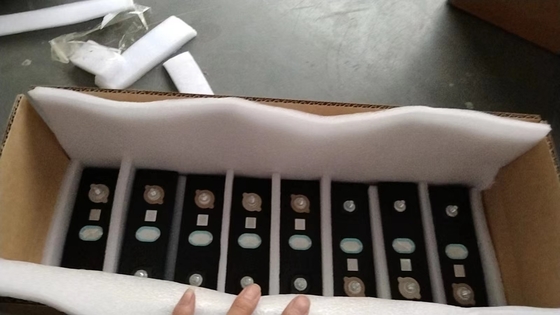

Packing & Shipping
Packing:
Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.
Delivery:
Any way of transportation are available.
For samples:delivery within 1-2 days.
For OEM: Within 100k pcs, 10-15 days; 100-500k pcs, 15-20 days; over 500k pcs, 25-30 days
Why choose us?
1. We are a supplier with 10 years' experiences. All our items come with high quality and good after-sale service.
