Product Details:
Payment & Shipping Terms:
|
| Product Name: | EVE Lifepo4 320ah Battery Cell 304Ah 3.2v 320ah Battery | Battery Model: | EVE |
|---|---|---|---|
| Nominal Voltage(V): | 3.2V | Nominal Capacity(mAh): | 320AH |
| AC-impedance(1000Hz): | 0.2mΩ | Weight: | 5.47KG |
| Dimension (mm) H*W*D: | 202X 171 X 72 | Maximum Charge Current At Room Temperature: | 1 C (Continuous) |
| Charging Voltage: | 3.65V | Application: | Lifepo4 Cell For Solar Energy Storage System |
| High Light: | Lifepo4 Battery Cell 3.2v 304Ah,Lifepo4 Battery Cell 3.2v 320ah,3.2v 320ah Lifepo4 Lithium Ion Battery |
||
EVE lifepo4 320ah battery cell 304Ah 3.2v 320ah battery prismatic lithium ion batterie
This is genuine CATL 3.2V 310Ah Lithium iron phosphate battery, it’s brand new with intact QR code .
We can offer you accessories like bus bars , screws and washers .The bus bar is made of Tin-planting pure copper , the screws and washers are made of SUS304 stainless steel .

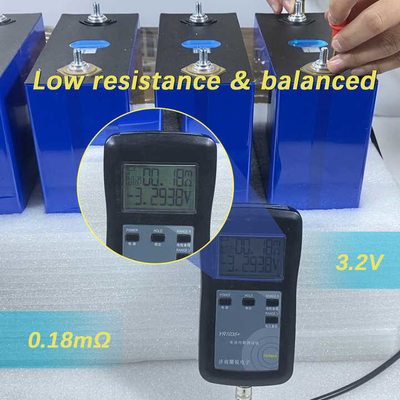

We test and match each batteries before packing . We make sure the whole lots batteries are close in voltage and internal resistance .
We offer a full power solution of LiFePO4 battery pack + charger + BMS.
Features of EVE lifepo4 320ah battery cell 304Ah 3.2v 320ah battery prismatic lithium ion batterie
1. Long Life ,can cyclic charge and discharge 3000 times
2. Capacity consistency,voltage consistency.
3. More safe than other power batteries.
4. No memory effect
5. Low self discharge rate
6. Environment friendly
7. Good safety characteristics
Specification - EVE lifepo4 320ah battery cell 304Ah 3.2v 320ah battery
| Item | Specification | |
| 1 | Chemistry | LiFePo4 |
| 2 | Nominal Capacity | 320Ah |
| 3 | Nominal Voltage | 3.2V |
| 4 | AC-impedance(1000Hz) | 0.14±0.05mΩ |
| 5 | Weight | 5.47KG |
| 6 | Dimension (mm) H*W*D | 202X 171 X 72 |
| 7 | Maximum Charge Current at Room Temperature | 1 C (Continuous) |
| Charging Voltage | 3.65V | |
| 8 | Maximum Discharge Current at Room Temperature | 1 C (Continuous) 3 C (60s) |
| Discharge End Voltage | 2.5V(>0℃),2.0V(≤0℃) | |
| 9 | Max Operating Temperature Range | |
| Charge | 0℃ ~ 65℃ | |
| Discharge | -35℃ ~ 65℃ | |
| 10 | Optimal Operating Temperature Range | |
| Charge | 15℃ ~ 35℃ | |
| Discharge | 15℃ ~ 35℃ | |
| 11 | Storage Temperature | |
| 1 month | -30℃~ 45℃ | |
| 6 months | -20℃ ~ 35°C | |
| *Cells should be stored at 20%SOC-40%SOC or the voltage is between 3.275V and 3.305V. | ||
The Detail images of EVE lifepo4 320ah battery cell 304Ah 3.2v 320ah battery
Attention:
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Application of 3.2V 302Ah 310AH 320Ah High Capacity Lithium Ion Battery
solar energy storage, solar power system, UPS supply,engine starting , electric
bicycle/motorcycle/scooter, golf trolley/carts, power tools.
Packing & Shipping
Packing:
Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.
Delivery:
Any way of transportation are available.
For samples:delivery within 1-2 days.
For OEM: Within 100k pcs, 10-15 days; 100-500k pcs, 15-20 days; over 500k pcs, 25-30 days
