IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home

IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home
IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home

Large Image :  IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home

Product Details:
Place of Origin: China
Brand Name: Amazing Energy
Certification: CE ROHS
Model Number: 51.2V 1000Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Carton
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per Month
Contact Now
Detailed Product Description
Product Name: 51.2 Volt 1000Ah Battery Cabinet Contruction: 5pcs 51.2V 200Ah Battery Module
Housing: Waterproof Custom Iron Cabinet Voltage: 51.2 Volt
Battery Capacity: 1000Ah Battery Size: 600*800*1600mm
Weight: 530KG IP Level: IP 56
High Light:

1000Ah lithium Battery Cabinet

,

IP56 lithium Battery Cabinet

,

IP56 lithium ion battery cabinet

IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home



Specification for 51.2V 200Ah battery module

Function Parameter
Norminal Battery Energy
10wh
Norminal Capacity
200Ah
Norminal Voltage
51.2V
Internal Resistance
≤12mΩ
Cycle Life
>4000 left 80% energy
Months Self Discharge
<3%
Charge Data
DC Normal Charge Voltage
54.75±1Vdc
Charge Mode
0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
Recommended Charger Current
≤200A
Allowed Max. Charge Current
200Adc
Charge Cut-off Voltage
54.75±1Vdc
Discharge Data
Continuous Discharge Current
200A
Allowed Max. discharge current
400A (option:200Adc)
Rang of DC discharge voltage
37.5V-54.75Vdc
Working Condition
Charge Temperature
0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection Level
IP56
Mechanical Data
Cell & Method
LiFePo4 prismatic 3.2V 100Ah cell, 16S2P
Shell material
Iron
Dimensions
customizable
Weight (lbs./kg.)
Approx. 90kg

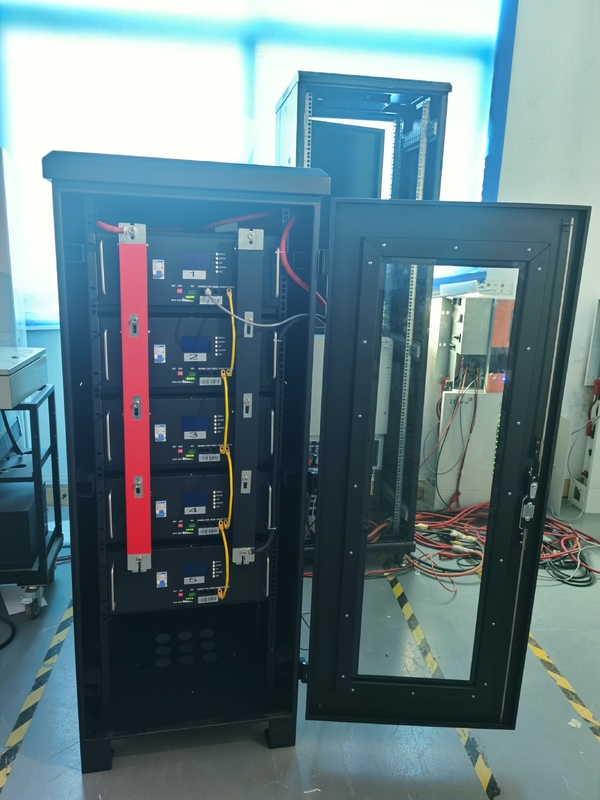

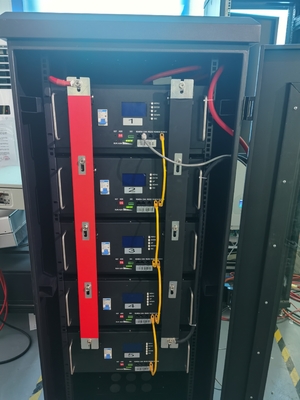

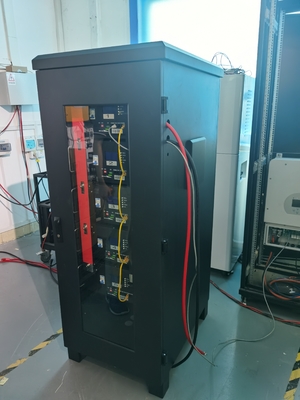

The photos 5pcs 51.2V 200Ah connection in parallels to be 51.2V 1000Ah battery cabinet

IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home 0IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home 1IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home 2



System example diagram



This 51.2V 1000Ah battery cabinet can work once connect with matching Inverter, it can be charged by solar panels, or electricity grid.



IP56 51.2 Volt 1000Ah Lithium Battery Cabinet For Car Charging Home 3



Feature
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V).
