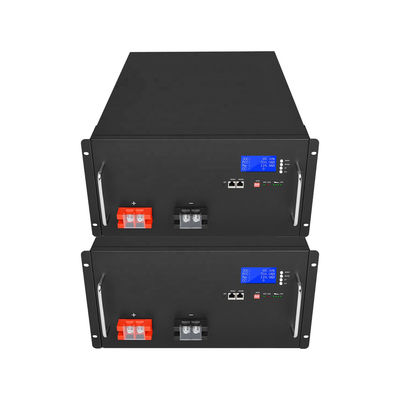

Large Image :  RV Caravan Rechargeable Power Station 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion Battery Pack for UPS

Product Details:
Place of Origin: China
Brand Name: Amazing Energy
Certification: CE ROHS
Model Number: 48V 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10 packs
Packaging Details: Standard Export Carton
Delivery Time: 10 days
Payment Terms: T/T
Detailed Product Description
Battery Size: 482*650*244mm Warranty: 3 Years
Cycle Life: 3000 Times Max.Charging Voltage: 58.4±0.2
Weight: Approx. 81Kg Internal Resistance: ≤35mΩ
Self Discharge: ≤3.5% Per Month At 25℃ Discharging Current: 200A
High Light:

RV Caravan Rechargeable Power Station

,

51.2V Rechargeable Power Station

,

LiFePO4 Battery Portable Power Station

RV Caravan Solar Energy Yacht Solar System 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion





Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
200Ah@0.2C
Energy
10240Wh
Internal Resistance
≤35mΩ
Cycle Life
3000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
Charging Current
200A
Max.Charging Current
200A
Standard Discharging
Discharging Current
200A
Max. Continuous Current
200A
Max.Pulse Current
210A(10S) Can be set up
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
LFP54H4K1 54174201(6.5) (16S1P)
Casing
Metal
Max.Dimension (L*W*H)
482*650*244mm(5.5U)
Weight
Approx.81Kg
Communication Interface
RS485 (8P8C)
Display
LCD





RV Caravan Rechargeable Power Station 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion Battery Pack for UPS 0

RV Caravan Rechargeable Power Station 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion Battery Pack for UPS 1

RV Caravan Rechargeable Power Station 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion Battery Pack for UPS 2





Feature

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.



RV Caravan Rechargeable Power Station 51.2V 48V 200Ah LiFePO4 Battery Lithium Ion Battery Pack for UPS 3



◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
