6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell
6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

Large Image :  6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

Product Details:
Place of Origin: China
Brand Name: Amazing Energy
Certification: CE UN38.3
Model Number: 24V 100AH
Payment & Shipping Terms:
Minimum Order Quantity: 10 packs
Packaging Details: Standard Export Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 10000 pack per month
Detailed Product Description
Product Name: 24v Lifepo4 Battery Pack 24v 100Ah Battery Cell: 3.2V 100Ah Prismatic Cell
Power: 2560WH Warranty: 3 Years
Cycle Life: 6000 Times Weight: 24kg
Size: 360*220*180mm OEM/ODM: Accept
Shipping: By Sea By Air IP Level: IP67
High Light:

IP67 2560WH Lifepo4 Storage Battery

,

2560WH IP67 Lifepo4 Storage Battery

,

IP67 24V 100Ah Lifepo4 Battery

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell



Advantages of 24v lifepo4 battery pack 24v 100Ah
1. Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning and explosion.Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.

Easy Installation: Our screw in bolt ports allow for easy and secure connectivity. Plug and Play.



2. Long Cycle Life: Can be charged and discharged more than 2000 times @ 85% DOD, 5000 times @ 60% DODLight Weight: LiFePO4 battery is lighter and smaller than Lead-acid battery/ Gel battery.



3. Protection: LiFePO4 batteries built in BMS it has over charge, over discharge, over temp, short circuit protection.



The Parameters of 24v lifepo4 battery pack 24v 100Ah

Item

Specification

Note





























Battery Pack

Nominal Voltage:

24V(25.6V)

Support Customized 6.4V-96V

Nominal Capacity:

100AH

Any capacity can be customized

End of Discharge Voltage:

19.2V



End of charge Voltage:

29.2V



Max.Cont. Charge Current:

≤50A

Free Customization Service

End of Charge Current:

100mA

Free Customization Service

Nominal Discharge Current:

50A(Safe)

Free Customization Service

Max. Pulse Discharge Current:

100A(10S)

Free Customization Service

Internal Resistance:

≤50mΩ



Operating Charge Temperature:

0~45℃



Operating Discharge Temperature:

-20~60℃



Storage Temp.(60-80% SOC Storage):

-10~45℃



Charge Method:

CC/CV



BMS:

Built in BMS

Support Customized Extra Function

Dimension:

360*420*180mm(L*W*H)

Free Customization Service

Weight:

24KG



Cycle Life:

2000+

(Cycle @RT, 1C rate, 85%DOD)

Battery Cell Used

Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell

3.2V 100AH/ 50AH

8S2P/ 8S4P

BMS

Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection

Support Customized Extra Function

LED Indicator

/

/





Battery Case

ABS Plastic Case

/



IP Grade:

IP56

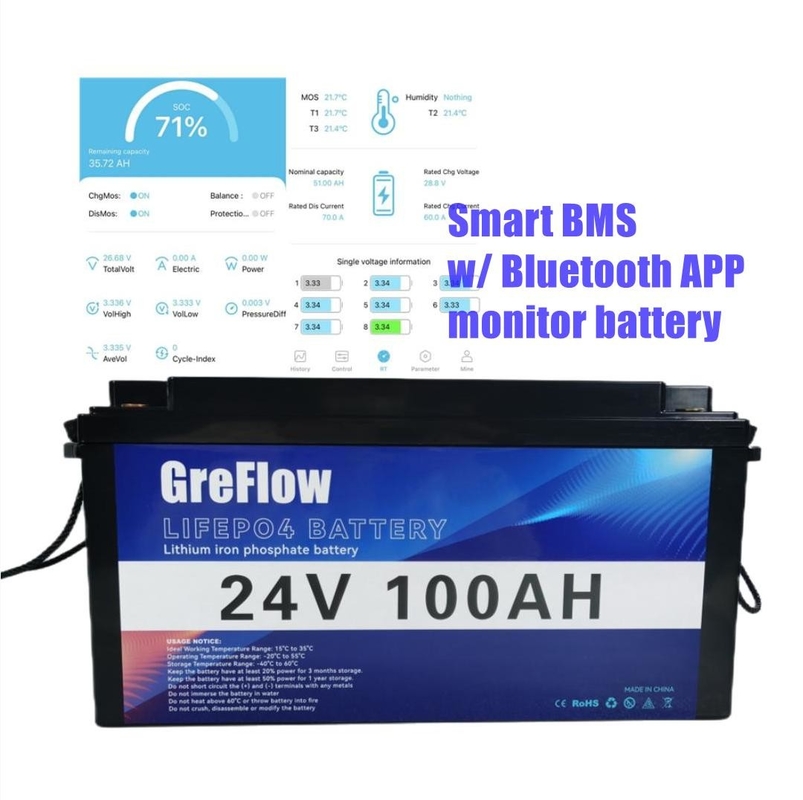

The Images of 24v lifepo4 battery pack 24v 100Ah

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 0

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 1

The products line of 24v lifepo4 battery pack:

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 2

Widely application of 24v lifepo4 battery pack 24v 100Ah:

6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell 3
