CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle

CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle
CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle

Large Image :  CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE MSDS
Model Number: 3.7V 126Ah
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 56-58 USD
Packaging Details: UN box
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pieces per two weeks
Detailed Product Description
Warranty: 3 Months Battery Size: 79mm*148mm*96mm
Capacity: 126Ah Material: Li(NiCoMn)O2
Voltage: 3.7v~ 4.2v Cycle Life: 1000 Times
Internal Resistance: Less Than 0.8MΩ Weight: 2450g
High Light:

126AH Prismatic Lithium Ion Cell

,

3.7V Prismatic Lithium Ion Cell

,

126Ah Prismatic Lithium Batteries

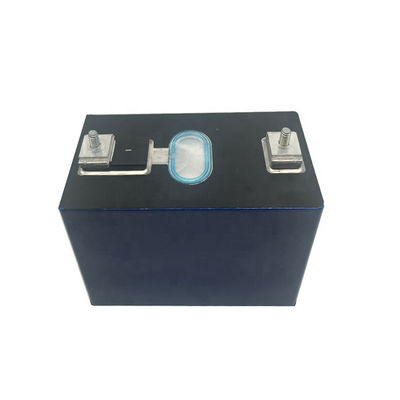

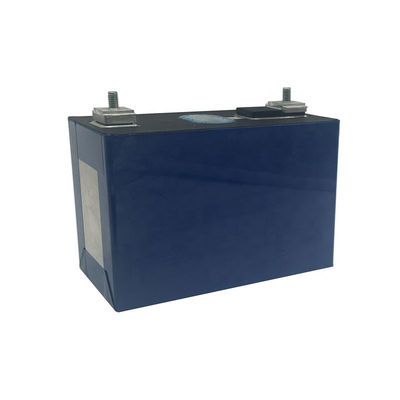

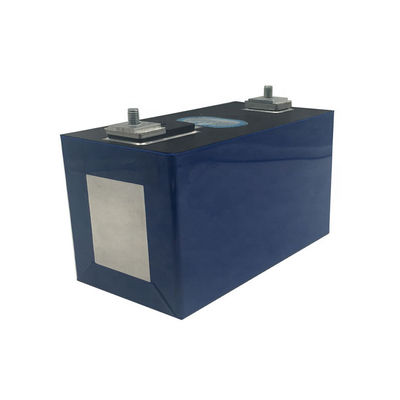

CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle



CATL Lithium Battery 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle Battery



Feature For CATL Lithium Battery NCM Battery


1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection



Product Description



Specification:

Battery type

3.6V Lithium ion Prismatic cell

Nominal Voltage(V)

3.6V

Nominal Capacity(mAh)

126Ah

Charge Voltage

4.2V

Discharge cut-off voltage

2.75V

Charging time

4Hours

Max charge current

1C

Max discharge current

2C

Internal resistance

Lesss 1mΩ

Charge Temperature(℃)

0-45

Discharge Temperature(℃)

-20~60

Storage Temperature(℃)

-20~35

Cycle life

1500times

Weight(g)

2450g

Size(mm)

79mm*148mm*96mm





Application for Prismatic Lithium Ion Cell CATL



Telecommunication

PV generation

EV cars

UPS and backup system

street light system



CATL 3.7V 126AH Prismatic Lithium Ion Cell For Electric Vehicle 0



FAQ


Q1: Are you trading company or manufacturer ?
A1: We are a factory loacted at dongguan city,welcome to visit us.


Q2: How long is your delivery time?
A2: Generally it is 4-5 days for sample order, 7-9 days for mass qty order .it is according to quantity.


Q3: Do you provide samples ?
A3: Yes, sample order is ok, as we have enough stock for normal model ebike battery.


Q4: Which battery cell would be used for assemble ?
A4: Domestic A grade cell or famous brand 18650 battery cell for each customer's request.


Q5: What is your terms of payment ?
A5: For bulk order,30% T/T in advance ,balance 70% before shippment. For sample order,100% payment
before production.


Q6: Which shipping methods would be provide?
A6: Sample order We would ship out by the express DHL ,UPS. Fedex .TNT,For mass quantity shipping by air
or by sea is ok.


Q7: What kind of after sales service would you provide ?
A7: If you have any questions when using,just feel free to contact our technology department,we have 24 hours service.
