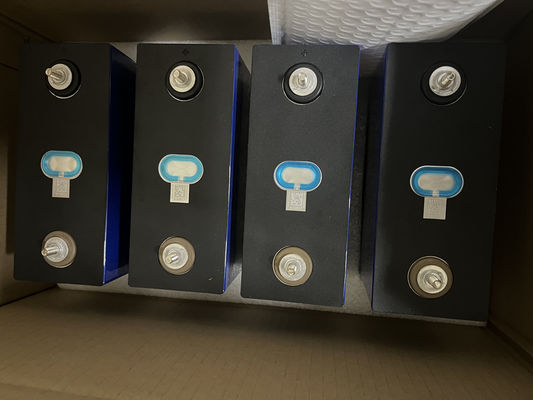

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage
3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage

Large Image :  3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: UL1973
Model Number: 3.2V 280Ah
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 99-105 pcs
Packaging Details: UN box
Delivery Time: 1-100pcs 5 days；more than 100pcs to be negotiated
Payment Terms: T/T
Supply Ability: 1000 pcs per two weeks
Contact Now
Detailed Product Description
Product Name: 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack Typical Capacity: 280Ah
Typical Voltage: 3.2V Cyclelife: 6000 Times
Width: 173.7±0.3mm Thickness: 71.5±0.5mm
Height（Total Height）: 207.2±0.5mm Height(Principal Height）: 204.2±0.5mm
Net Weight: 5.4±0.30kg
High Light:

CATL 32280 3.2 V Lifepo4 280ah

,

CATL 32280 Golf Cart Battery

,

CATL 32280 Lifepo4 Battery

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage


Specifications of 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack
item
value
Warranty
5YEARS
Application
Golf Carts, Electric Bicycles/Scooters, electric vehicles
Brand Name
Catl
Certification
UL
Model Number
catl-32280
Place of Origin
China
Weight
5.3kg
Application
Electric Bicycles
Battery type
LiFePO4
Nominal Voltage
3.2v
Capacity
280ah
Battery cell
China Cells
Cycle life
＞5000cycle
Dimension
72*175*200mm
Standard Charge Current
0.5C
Maximum charge current
1C
Max. discharge current
3C
Max.charge voltage
3.65V
Discharge cut-off voltage
2.0V
Charge method
CC/CV
Charge working temp
0ºC~55ºC
Discharge working temp
-20ºC~55ºC



Application for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

Boat,Commnication storage,Enery storage,E-bus,UPS,R/V Caravan

Packaging & Delivery of 3.2V 280Ah CATL lifepo4 battery

Selling Units:Single item
Single package size: 19X10X22 cm
Single gross weight:6.000 kgPackage
Type:Inner Box+Outer Carton

Parameters of 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack
3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 0
Test data of 3.2v 280ah lifepo4 cell assembly lfp battery pack

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 1



Rate Discharge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack


3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 2



Rate Charge Energy for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 3



High &Low temp.Energy of 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 4



Package for 3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack

3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 5



3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 6



3.2v 280ah Lifepo4 Cell Assembly Lfp Battery Pack For Energy Storage 7
