10Kwh Powerwall 16S1P Wall Power Battery for energy storage system

Certification
China Shenzhen GreFlow Energy Co., Limited certification
China Shenzhen GreFlow Energy Co., Limited certification
Customer Reviews
The order arrived today - Yay! The batteries and hardware aare nice and the voltages are closer than others we have purchased from different vendors. Thank you for all your help and we will use your company exclusively as we set up our catalog.

—— Stanley - USA CATL 271Ah cell

Everythink is going fine! and plan to order more 8 sets of 51.2V 1000Ah 50Kwh battery cabinet.

—— Johnson Solomon - USA 51.2V 1000Ah battery cabinet

I checked voltages and internal resistance and they ware all between 3.295 and 3.297, only 2 mV between them, and IR was between 0.18 and 0.23, or 0.05 mOhm between them. Very good, and thanks for advice.

—— Mike - Australia CATL 302Ah cell

Received 48V 100Ah module no damage, I open four modules, turned them on, and verifyed voltage, cells in modules have the same voltage. This is good to see that cells keeped the same voltage during 3 months.

—— Moussa - South Africa 48V 100Ah LiFePo4 module

I'm Online Chat Now

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system
10Kwh Powerwall 16S1P Wall Power Battery for energy storage system

Large Image :  10Kwh Powerwall 16S1P Wall Power Battery for energy storage system

Product Details:
Place of Origin: China
Brand Name: GreFlow Energy
Certification: MSDS UN38.3
Model Number: 10KW Power Wall battery
Payment & Shipping Terms:
Minimum Order Quantity: 2 packs
Price: inquiry us
Packaging Details: Standard Export UN Box
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 200 per month
Detailed Product Description
Product Name: Powerwall 2 Capacity Powerwall Capacity 100Ah 200Ah 48v 10Kwh Battery Cell: LiFePo4 Prismatic Battery Cell
Battery Pack Construction: 16S1P Dimension: 673*618*193MM
Net Weight: 91kg Weight With Package: 98KG
Cycle Life: 6000 Times At 80% DOD Cell Type: LiFePO4 3.2V 50Ah Cell
Communication Protocolsion: CAN And RS485 Support Inverter: Sorlark, Deye And Other Most Of Inverter Brands
Extent: Support 8pcs Connection In Parallels Application: For Energy Storage System
High Light:

16S1P Wall Power Battery

,

Powerwall Wall Power Battery

,

16S1P 10Kwh Powerwall

10Kwh Powerwall 16S1P Wall Power Battery For Energy Storage System



Powerwall 2 Capacity Powerwall Capacity 100Ah 200Ah 48v 10Kwh Wall Power Battery



16S1P 51.2V 200Ah, can be OEM production with your model and LOGO


Descriptions of Powerwall 2 Capacity Powerwall Capacity 100Ah 200Ah 48v 10Kwh Battery



Technical specification

Battery Type

LiFePo4 (Lithium Iron Phosphate Battery)

Norminal Voltage (V)

51.2V

Norminal Energy (KWh)

5.12KWH

Design Capacity

200Ah

Design Life

15 Years


Product Size

Size

673*618*193MM

Weight

89KG


Technical Parameters

Cycle life

> 6000 times 80% DOD

Operating Voltage Range

40V- 58.4V

Charging Voltage

DC 58.4V

Charging/Discharging Current (A)

Same Port 100A

Internal Resistance

<30mΩ


BMS Parameters

Self-Consumption

<2W

Rated Voltage

51.2V

Balance Current

30-65 (mA)

Communication Method

CAN / RS485 / RS232

Information Storage

500 Strip

Charging limiting Current

can be set through upper computer


Ambient Temperature

Operating Temperature

-10°C ~ 50°C

Storage Temperature

10°C ~ 50°C

Humidity

15% ~ 75%


Warranty

Warranty time

5 Years



Image display of Powerwall 2 Capacity Powerwall Capacity 100Ah 200Ah 48v 10Kwh Battery

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 0



10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 1





10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 3

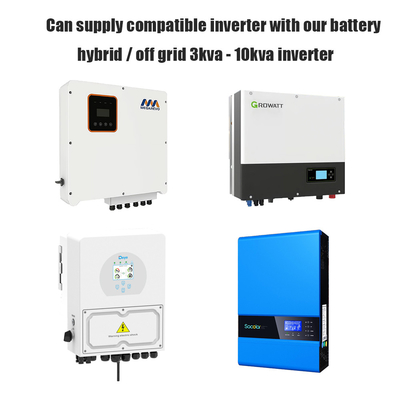

If you need inverter with our Power wall storage battery, we can supply10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 4

Work as complete solar system with your PV

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 5


Product Size

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 6



Compatible Inverter brands of Smart Energy Storage Off-Grid Solar Battery Storage

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 7

The Features of Powerwall 2 Capacity Powerwall Capacity 100Ah 200Ah 48v 10Kwh Battery

1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.


max support 15pcs connection in parallels

Solution Diagram
10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 8



What is a solar battery and how does it work?

Solar panels make more electricity during the middle of the day than they do at any other time.

The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.



Solar batteries are able to store that extra solar energy so you can use it later on.

Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.

What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 9

Features of 48v lifepo4 battery lithium battery 48v 200ah power wall 48v200ah batterie pack
:

Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.

Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.

BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.

Charging: Designed to work with AGM chargers.

Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.

Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.


10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 10



The Package of wall mounted battery 48V 200Ah wall mount 10kwh powerwall battery

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 11



We also have 48V or 51.2V 100Ah 5KW LiFePo4 Power Wall Battery in choose,

Inquiry our sales for details

10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 12



the Shipping Method of ES-BOX5 Wall mount 10KW LiFePo4 Power Wall Battery



You can choose DHL, Fedex UPS to door if it is urgent

You can choose By sea to door for sample and not urgent

For batch order you can choose by sea to port

We have MSDS, UN38.3 test report for kinds shipping ways.



10Kwh Powerwall 16S1P Wall Power Battery for energy storage system 13
