Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes

Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes
Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes

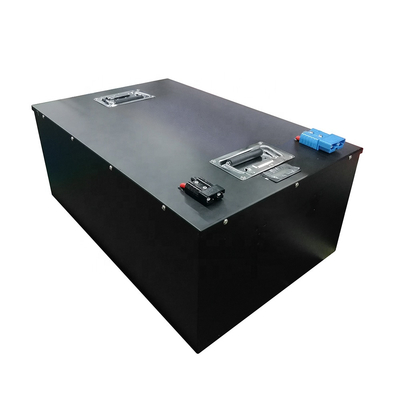

Large Image :  Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE ROHS MSDS UN38.3
Model Number: 72V 150Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Standard export package
Delivery Time: 15-20 days
Payment Terms: T/T Paypal
Supply Ability: 1000pcs per month
Detailed Product Description
Product Name: Customize Production Lifepo4 EV Battery Pack Nominal Voltage: 76.8V
Battery Size: 870*365*245 Mm Or OEM Compact Size Application: Electric Vehicles
Warranty: 5 Years Battery Type: LiFePO4
Nominal Capacity: 150Ah Weight: Net Weight 100kGS, Package With Sood Pallet 1200KG
Cycle Life: 4000+ Cycles Place Of Origin: China

Customized Production Lifepo4 EV Battery Pack 72v 150ah With 4000+ Lifes



Basic Specifications of 72V 150Ah LiFePo4 EV Battery Pack

Item
Customized Production Lifepo4 EV Battery Pack
Brand Name
OEM
Model Number
JR-72150
Battery Type
LiFePO4
Nominal Capacity
150Ah
Nominal Voltage
76.8V
Battery type
lifepo4 cell 50Ah / 25Ah , lithium iron phosphate battery Lifepo4
Battery Type
Lifepo4 battery pack for 10KW motor 72v
Battery Size
870*365*245 mm or OEM compact size
Composed way
24S2P /24S4P
BMS Protection current
BMS 150A for 10KW motor
Charge volt
87.6V
Charge current
30A ~60A, max 60A
Discharge current max
150Amps continous , peak 300Amps/2 seconds
Discharge cut-off volt
60V
Storage tempreatures
0-45℃
Working tempreatures
-5-55℃
Weight
Net weight 100kGS, package with sood pallet 1200KG
Application
Electric vehicles EV
Cycle life
4000+ times at 80% dod.
Warranty
 5 years



Detail images of 72V 150Ah Lifepo4 EV Battery Pack

Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes 0



Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes 1

Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes 2
Customize Production Lifepo4 EV Battery Pack 72v 150ah with 4000+ lifes 3
Package information of 72V 150Ah Lifepo4 EV Battery Pack

Single battery pack 72v 150ah package, gross 120kg/carton.
Carton size: 89*41*38cm 10KW
Unit 72v 150ah for AGV EV Electric Bus Lifepo4 battery


Questions and answers for LiFePo4 EV Battery Pack.

Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
