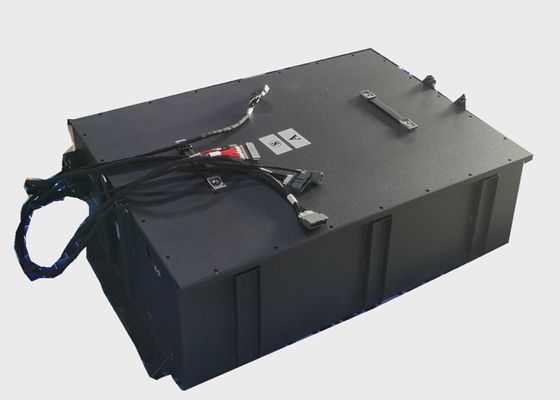

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle
80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle

Large Image :  80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle

Product Details:
Place of Origin: China
Brand Name: Amazing Energy
Certification: CE RoHS
Model Number: 48V 300Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1 module
Packaging Details: Standard Export Carton
Delivery Time: 15-30 days
Supply Ability: 100 pcs per month
Detailed Product Description
Product Name: Factory Forklift Battery Lifepo4 80V 300Ah Energy: 24KWh
Norminal Voltage: 80V Nominal Capacity: 300Ah
Warranty: 3 Years Battery Size: Customized
Weight: 210KG Certification: CE ROHS
Protection: Built-in Smart BMS Battery Material: Lifepo4 - Lithium Iron Phosphate
High Light:

80V 300Ah Lifepo4 Forklift Battery

,

Lifepo4 Forklift Battery 24KWh

,

IP54 Lithium Ion Batteries For Electric Vehicles

Custom Factory Forklift Battery Lifepo4 80V 300Ah For Electric Vehicle Power



We are LIFEPO4 battery manufacturer! We are in this Battery Business over 10 years!
We can do OED/ODM service!



The advantage of Forklift Battery Lifepo4 80V 300Ah compare with lead acid battery for Forklift EV
* Weight is about 70% lighter than lead acid batteries
* Two to four times for the service life (2500-8000 cycles)
* Great for Marine, RV, floor Sweepers, Golf, UPS systems, solar energy storage , Solar, Off Grid
* Battery Management Systems (BMS) with power terminal cut-off and recovery
* Cell balancing and low voltage/over voltage protection, short-circuit protection
* Maximize your energy potential with 100% Depth of Discharge (DOD)
* Drop in replacements (plug and play)
* Run as many needed in parallel or in series
* Offer you 3-year warranty
* OEM /ODM: voltage/capacity/size/connector/display/color/Logo/sticker, etc



The Inside Picture of battery pack with Prismatic LiFePo4 cell

with less cell more stable performance

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle 0



Basic specification of Forklift Battery Lifepo4 80V 300Ah



Item name
 Lifepo4 80V 300AhFor forklift Electric Vehicle
Nominal Voltage
80V  83.2V
Nominal Voltage
300Ah
Charge Voltage
94.9V
Components
26S3P
Peak Discharge (10 Sec)
600A
Continuous Charge / Discharge Rate
300A
Capacity (amp hours)
300AH
Capacity (watts)
24KWh
Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
2500 times 80%dod
Depth of Discharge
100% DOD
Reserve Minutes @ 100A
600 min
Reserve Minutes @ 200A
240 min
Self Discharge
≤3% per month
Cell Type
Prismatic cell
Modular
Parallel Connection or Series Connection
Connector
M8 SCREWS
Display
Voltage V /Capacity % with button available



Size&Weight

Model
AE80300
Weight
210KG
Size
688*550*350mm (L*W*H) custom
Temperature performance
Charge Temperature
0℃ to 45℃(32℉ to 113℉)
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉)
Storage Temperature
0℃ to 45℃(32℉ to 113℉)
Water Dust Resistance
IP54 or IP56 available
Safety & Protection of our LiFePo4 battery pack
Built in Automatic Battery Protection System
Yes
Automatic Low Voltage Disconnect
Yes
Automatic Short Circuit Protection
Yes
Automatic Over Voltage Protection
Yes
Automatic Over Current Protection
Yes
Automatic Internal Cell Balancing
Yes
Automatic Over Charge Protection
Yes
Automatic Over Discharge Protection
Yes
Automatic Over Temperature Protection
Yes



Cell Info. 3.2V 100Ah Prismastic cell.
Top quality ,best quality cell.
We offer Interconnects and screws.
Last over 3000 cycle times.

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle 1



Project experience for 80v 300ah forklift battery

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle 2



Model list of LiFePo4 Forklift battery

80V 300Ah Lifepo4 Forklift Battery 24KWh IP54 For Electric Vehicle 3



Other applications of Lifepo4 80V 300Ah battery
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light



Applications on EV Power of LiFePo4 battery
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
