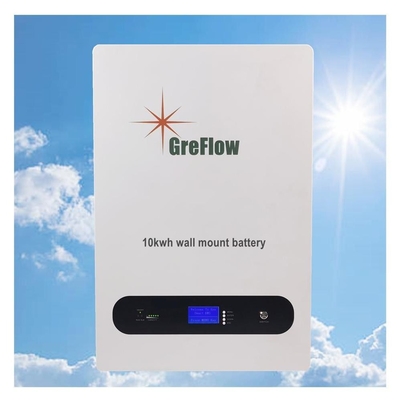

Lithium 48v 200ah Solar Battery With LCD Display Screen

Lithium 48v 200ah Solar Battery With LCD Display Screen
Lithium 48v 200ah Solar Battery With LCD Display Screen

Large Image :  Lithium 48v 200ah Solar Battery With LCD Display Screen

Product Details:
Place of Origin: China
Brand Name: GreFlow Energy
Certification: MSDS UN38.3
Model Number: 10KW Power Wall battery
Payment & Shipping Terms:
Minimum Order Quantity: 2 packs
Price: inquiry us
Packaging Details: Standard Export UN Box
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 200 per month
Detailed Product Description
Product Name: 10kwh 48v 200ah Lithium Ion Solar Battery For Energy Storage Battery Cell: LiFePo4 Prismatic Battery Cell
Battery Pack Construction: 16S4P Dimension: 673*618*193MM
Net Weight: 91kg Weight With Package: 98KG
Cycle Life: 6000 Times At 80% DOD Cell Type: LiFePO4 3.2V 50Ah Cell
Communication Protocolsion: CAN And RS485 Support Inverter: Sorlark, Deye And Other Most Of Inverter Brands
Extent: Support 8pcs Connection In Parallels Application: For Energy Storage System
High Light:

lithium 48v 200ah solar battery

,

LCD display screen 48v 200ah battery

,

lithium solar battery 48v 200ah

lithium battery 48v 200ah solar battery 48v 200ah with LCD display screen
powerwall 10kwh home lithium battery solar storage 48v 200ah livepo4 battery pack
16S1P 51.2V 200Ah, can be OEM production with your model and LOGO

Descriptions of powerwall 10kwh home lithium battery solar storage 48v 200ah
Technical specification
Battery Type LiFePo4 (Lithium Iron Phosphate Battery)
Norminal Voltage (V) 51.2V
Norminal Energy (KWh) 5.12KWH
Design Capacity 200Ah
Design Life 15 Years

Product Size
Size 673*618*193MM
Weight 89KG

Technical Parameters
Cycle life > 6000 times 80% DOD
Operating Voltage Range 40V- 58.4V
Charging Voltage DC 58.4V
Charging/Discharging Current (A) Same Port 100A
Internal Resistance <30mΩ

BMS Parameters
Self-Consumption <2W
Rated Voltage 51.2V
Balance Current 30-65 (mA)
Communication Method CAN / RS485 / RS232
Information Storage 500 Strip
Charging limiting Current can be set through upper computer

Ambient Temperature
Operating Temperature -10°C ~ 50°C
Storage Temperature 10°C ~ 50°C
Humidity 15% ~ 75%

Warranty
Warranty time 5 Years



Detail images

Lithium 48v 200ah Solar Battery With LCD Display Screen 0Lithium 48v 200ah Solar Battery With LCD Display Screen 1

Lithium 48v 200ah Solar Battery With LCD Display Screen 2


Product Size of powerwall 10kwh home lithium battery solar storage 48v 200ah

Lithium 48v 200ah Solar Battery With LCD Display Screen 3

Product Interface:

Lithium 48v 200ah Solar Battery With LCD Display Screen 4



Compatible Inverter brands of powerwall 10kwh home lithium battery solar storage 48v 200ah

Lithium 48v 200ah Solar Battery With LCD Display Screen 5

The Features of 48v 200ah Lithium Ion Solar Battery For Energy Storage
1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.

max support 15pcs connection in parallels

Solution Diagram
Lithium 48v 200ah Solar Battery With LCD Display Screen 6

What is a solar battery and how does it work?
Solar panels make more electricity during the middle of the day than they do at any other time.
The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.

Solar batteries are able to store that extra solar energy so you can use it later on.
Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.
Lithium 48v 200ah Solar Battery With LCD Display Screen 7
Features of LiFePO4 Battery compare with Lead acid Batteries:

Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.
Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
Charging: Designed to work with AGM chargers.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.

Lithium 48v 200ah Solar Battery With LCD Display Screen 8

The Package of Lifepo4 Battery Home Energy Storage Battery 10kw
Lithium 48v 200ah Solar Battery With LCD Display Screen 9



We also have 48V or 51.2V 100Ah 5KW LiFePo4 Power Wall Battery in choose,

Inquiry our sales for details

Lithium 48v 200ah Solar Battery With LCD Display Screen 10



the Shipping Method of ES-BOX5 Wall mount 10KW LiFePo4 Power Wall Battery



You can choose DHL, Fedex UPS to door if it is urgent

You can choose By sea to door for sample and not urgent

For batch order you can choose by sea to port

We have MSDS, UN38.3 test report for kinds shipping ways.



Lithium 48v 200ah Solar Battery With LCD Display Screen 11
