Product Details:
Payment & Shipping Terms:
|
| Type: | Lifepo4 Prismatic Cells | Model: | CA100 |
|---|---|---|---|
| Voltage: | 3.2V | Capacity: | ＞100AH |
| Shell Material: | Plastic | Charging: | 0°C ~ 45°C |
| Discharging: | -20°C ~ 55°C | Storage Humidity: | <70% |
| Highlight: | Powerwall CALB Lifepo4 Battery,100Ah CALB Lifepo4 Battery,CALB Lifepo4 Prismatic Cells |
||
Powerwall CALB Lifepo4 Battery
CALB CA100 lifepo4 prismatic cells 3.2v for powerwall A Grade
Storage of CALB CA100 lifepo4 prismatic cells
CA100 Lithium iron phosphate cell should be stored (more than 1 month) in a clear, dry and ventilated room under ambient temperature of -20℃~25℃, and it should be kept away from caustic material, fire source and heat source. Do not invert battery during storage; and avoid mechanical shock and stress.
| No | Item | Parameter Specification | |
| 1 | Battery Module | CA100 | |
| 2 | Nominal Capacity | 100Ah | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Internal Resistance | ≤ 0.9mΩ | |
| 5 | Charging (CC-CV) | Max Charge Current | 100A (1C) |
| Charging Upper Limit Voltage | 3.65V | ||
| 6 | Discharging | Max Continuous Discharge Current | 200A(2C) |
| Discharging Cut-off Voltage | 2.5V | ||
| 7 | Recommended SOC Usage Window | SOC: 10%~90% | |
| 8 | Operation Thermal Ambient | Charging | 0°C ~ 45°C |
| Discharging | -20°C ~ 55°C | ||
| 9 | Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 45°C |
| Long term (within 1 year) | -20°C ~ 20°C | ||
| 10 | Storage Humidity | <70% | |
| 11 | Battery Weight | 4Kg±10g | |
| 12 | Battery Dimension | 216*142*67mm | |
| 13 | Shell Material | ||
Model: CA100; Size: 142*67*215.5mm; Shell material: plastic

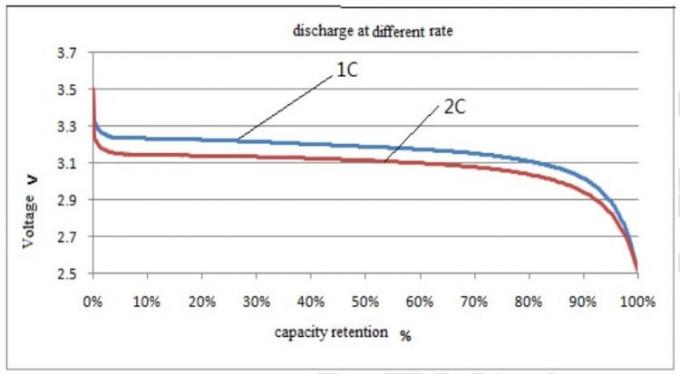

A typical curve of single cell discharged at room temperature:

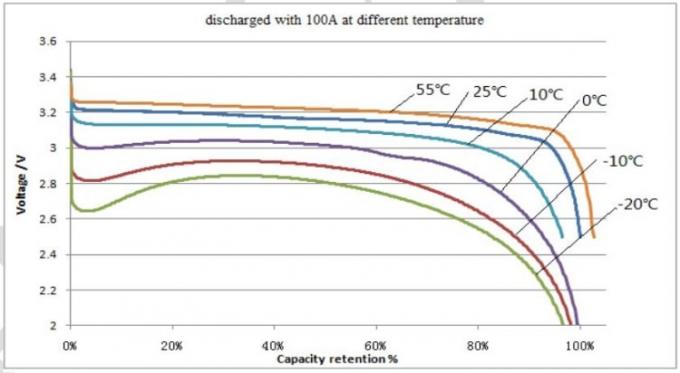

A typical curve of single cell discharged with 100A at different temperature:

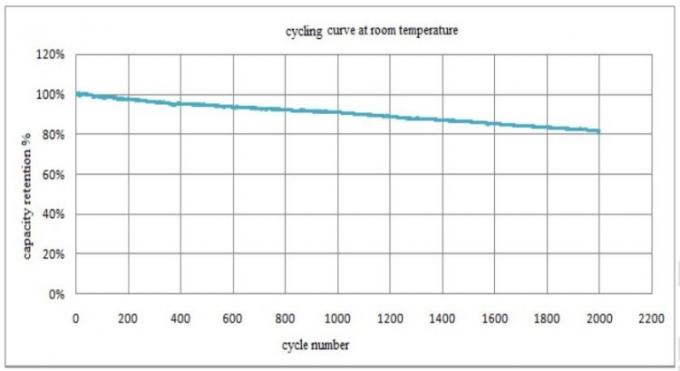

2000 times cycling curve of single cell:
Note
Application
Product Features
* Genuine Grade A lithium battery cells, brand new
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Existing stock for short delivery time.
* OEM orders are available (battery pack, battery with spot welding ect.)
